Carbons and Hybrid Materials

Scientific objectives



  • Development of new synthesis pathways and innovative carbon and hybrid carbon materials (C/metal or C/ceramic nanocomposites) with perfectly controlled characteristics (texture, structure, morphology, functionalities)
  • Understanding the mechanisms occurring during the preparation of these materials
  • Understanding the interactions between the carbon (or hybrid carbon) materials and their environment (gas, liquid, solid) under different constraints (thermal, mechanical, chemical, electrochemical) occurring during their utilisation in different applications
  • Improving performances of carbon material in the field of energy and gas storage, catalysis and water/air depollution.

Permanent members

 Adrian BEDA Research EngineerCV

Julien PARMENTIER

Assistant professor Co-leaderCV

 Luc DELMOTTE Research EngineerCV

 Bénédicte RETY EngineerCV

Joseph DENTZER Research EngineerCV

Dominique SCHWARTZ Assistant professor CV

Roger GADIOU ProfessorCV

Camélia GHIMBEU Principal Investigator Co-leaderCV

Jean-Marc LE MEINS Assistant professorCV




Non-permanent members

Ophelie BRINGEL PhD StudentProject

Sirine ZALLOUZ PhD StudentProject

Nemanja DRAZEVICANIN EngineerProject

Angel ESCAMILLA  Post-doctoral researcherProject

Arianit GASHI PhD StudentProject

Arieta KRYEZIU PhD StudentProject

Louiza LARBI PhD StudentProject

Research fields

The main research activities appear in the next figure :

Nanostructured carbon materials obtained by green synthesis concepts

J. Parmentier, C. Matei Ghimbeu, J.-M. Le Meins, L. Delmotte, C. Vix-Guterl

The simultaneous control of porosity, morphology, surface chemistry and structure of carbon materials are of prime importance in several application fields. The design of such materials requires a good control of classical synthesis routes but also, in some cases, the development of new and original synthesis pathways. In this case, the understanding of the formation mechanisms of these carbons is required to obtain materials with well-tailored physico-chemical features. These mechanisms concern the soft-template route, the thermal and laser pyrolysis, wood welding, graphitization assisted by catalysis, hydrothermal synthesis and shaping of carbon (or hybrid carbon) materials.

In this framework, we developed original environmentally-friendly synthesis approaches combining biosourced carbon precursors, soft-synthesis conditions (limited temperature and normal pressure), less corrosive reagents and reduced number of synthesis steps (“one-pot” synthesis)



Reprinted with permission from [Exceptionally highly performing Na-ion battery anode using SnO2 nanoparticles confined in mesoporous carbon, A Jahel, C Matei Ghimbeu, A Darwiche, L. Vidal, S. Hijjar-Garreau, C Vix-Guterl, L Monconduit, , J Mater Chem A, 3 (2015) 11960] © 2015 RSC publishing   DOI : 10.1039/C5TA01963J

Publications

F. Braghiroli, V. Fierro, J. Parmentier, A. Pasc, A. Celzard, Green Chem. 2016 18, 3265.DOI : 10.1039/C5GC02788H ; A Maetz, L Delmotte, G Moussa, J Dentzer, S Knopf, C. Matei Ghimbeu, Green Chem. 2017, 19, 2266 DOI : 10.1039/C7GC00684E ;  J Conder, C Vaulot, C Marino, C Villevieille, C Matei Ghimbeu, ACS Applied Energy Materials 2019 2, 4841 DOI : 10.1021/acsaem.9b00545



Understanding the performances of carbon materials used in adsorption and energy storage



C. Matei Ghimbeu, J. Dentzer, R. Gadiou, J.-M. Le Meins, J. Parmentier, B. Rety, C. Vix-Guterl

To understand the influence of each physico-chemical characteristic of carbon on their performances (adsorption/storage capacity, selectivity, stability during electrochemical cycling…), an original approach was developed consisting of a systematic variation of one characteristic of the material (texture, structure, functionalities) keeping, as far as possible, the others unchanged. This strategy, requiring deep knowledge of the formation/modification mechanisms of carbons, enabled correlations between carbon characteristics and their performances to be established. Indeed, we could demonstrate that the active surface area (ASA) is the key parameter influencing the irreversible capacity of Li and Na+ ion batteries as well as the capacitance of supercapacitors.



Reprinted with permission from [Insights on the Na+ ion storage mechanism in hard carbon: Discrimination between the porosity, surface functional groups and defects, C. Matei Ghimbeu, J Gorka, V Simone, L Simonin, S Martinet, C Vix-Guterl, NanoEnergy 2018, 44, 327 ] © 2018 Elsevier B.V.    DOI : 10.1016/j.nanoen.2017.12.013

Publications

C. Bousige, C. Ghimbeu, C. Vix-Guterl, A Pomerantz, A. Suleimenova, G. Vaughan, G. Garbarino, M. Feygenson, C. Wildgruber, F.J. Ulm, R.-M.  Pellenq, and B. Coasne, Nature Materials 2016, 15, 576 DOI : 10.1038/nmat4541 ; G. Moussa, C. Ghimbeu, P.L. Taberna, P. Simon, C. Vix-Guterl, Carbon 2016, 105, 628 DOI : 10.1016/j.carbon.2016.05.010 ; Y Liu, B Rety, C Matei Ghimbeu, B. Soucaze-Guillous, P-L Taberna, P Simon, J Power Sources 2019, 434, 226734 DOI : 10.1016/j.jpowsour.2019.226734  ; A Beda, C Villevieille, P-L Taberna, P Simon, C Matei Ghimbeu, J. Mater. Chem. A, 2020,8, 5558 DOI : 10.1039/C9TA13189B



Another important objective is to understand the interactions of carbon materials with their environment (gas, liquid, solid) in conditions similar to their application. For this purpose, specific characterization techniques were developed in our laboratory, such as TPD-MS (temperature programmed desorption coupled to mass spectrometry). This technique was able to identify and quantify the surface chemistry of carbon materials, study their affinity with certain molecules and even study the pyrolysis process of carbon precursors. Combined with other complementary techniques like XPS (X-ray photoelectron spectroscopy) and physisorption analysis (N2, CO2, H2O, COVs) led to an understanding of the nature of the interaction with their environment and  improved performances in applications such as pollutant removal from water (amoxicillin, chlorinated hydrocarbons, pesticides…) and from air (NOx, COVs),  gas storage and gas separation (H2, CO2 and CH4).



Reprinted with permission from [Microporous carbon adsorbents with high CO2 capacities for industrial applications, S Builes, T. Roussel,  C Matei GhimbeuJ Parmentier,  R Gadiou, C Vix-Guterl, L. F. Vega, Phys. Chem. Chem. Phys., 2011,13, 16063 ] © 2011 RSC publishing . DOI : 10.1039/C1CP21673B

Publications

J. Parmentier, F.O.M. Gaslain, O. Ersen, T.A. Centeno, L.A. Solovyov, Langmuir. 2014, 30, 297–307 DOI : 10.1021/la402762v  S Masson, C Vaulot, L Reiner, S Guittonneau, R Gadiou , L, Duclaux, Environ Sci Pollution Res, 2017, 24, 10005-10017 DOI : 10.1007/s11356-016-7614-0   B Wanassi, I Ben Hariz, C Matei Ghimbeu, C Vaulot, M Jeguirim, Energies 2017, 10, 1321 DOI : 10.3390/en10091321  ; D Peredo-Mancilla, C Matei Ghimbeu, B Ngoch-Ho, M Jeguirim, C Hort, D Bessieres, J. of Environ. Chem. Eng., 2019, 7, 103368, DOI :10.1016/j.jece.2019.103368  ;P. Bulavová, J Parmentier V Slovák, Microporous and Mesoporous Materials 2018, 272, 155 10.1016/j.micromeso.2018.06.024



Development of hybrid carbon materials (C/M and C/MXn, X=C, N, O, S) via the confinement of metal- based nanoparticles (NPs) in carbon

C. Matei Ghimbeu, J. Parmentier, J.-M. Le Meins, C Vaulot, L Delmotte, C. Vix-Guterl

The addition of a second phase to the carbon framework enabled the introduction of new functionalities and therefore an extension of their application fields or an improvement of their performances. Hybrid materials, combining a carbon matrix (porous or not) and metal (M)-based nanoparticles (NPs) were developed. Depending on the synthesis conditions it is possible to control the carbon characteristics (mesoporosity, surface functionalities, structure…) but also those of NPs, such as :

  • Chemical nature (metal (Pd, Co), alloys (PdxM1-x), metal oxides and non-oxides (SnO2, GeO2 ,TiO2, CrN, WC, WS, LiFePO4)
  • Location (in the pores, in the wall or on the external surface of carbon)
  • Size and dispersion

The CHM team has most notably developed the “one-pot” soft-template approach with the in situ formation of NPs during the carbonization of a mixture of carbon precursor/surfactant/metallic salt. These NPs, confined in carbon matrix and/or in carbon mesoporosity, appear accessible to fluids/electrolytes via the opened porosity. This confinement leads to different behaviour and performances of the materials compared to those obtained by classical infiltration of NPs into the carbon matrix.



Reprinted with permission from [Controlled synthesis of NiCo nanoalloys embedded in ordered porous carbon by a novel soft-template strategy C. Matei Ghimbeu, J.-M. Le Meins, C. Z., L.Vidal, G. Schrodj, M. Latroche, C. Vix-Guterl; Carbon 2014 67 260-272] © 2016 Elsevier B.V. DOI : 10.1016/j.carbon.2013.09.089  and from [ One-pot laser-assisted synthesis of porous carbon with embedded magnetic cobalt nanoparticles  C.Matei Ghimbeu,   M. Sopronyi,  F.Sima,  L.Delmotte,  C. Vaulot,  C. Zlotea,  V. Paul-Boncour and  J.-M. Le Meins   Nanoscale  2015 7 10111] © 2015 RSC publishing    DOI :10.1039/C5NR01687H

Publications

A Martínez de Yuso, Y Oumellal, C Zlotea, L. Vidal, C Matei Ghimbeu, Nanostructures & Nano-Objects, 2017, 9, 1-12 DOI : 10.1016/j.nanoso.2016.11.001 ; J Kiener, M Girleanu, O Ersen, J Parmentier, Cryst. Growth Des. 2020, 20, 2004 10.1021/acs.cgd.9b01662

Nanoparticles (NPs) confinement in carbon for gas and energy storage applications

 C. Matei Ghimbeu, J-M Le Meins, J. Parmentier,  L. Vidal, C. Vix-Guterl

Hybrid carbon materials present supplementary functionalities due to the presence of nanoparticles (NPs) which act as an active phase for electrochemical, catalytic, magnetic or absorption applications. Interestingly, these biphasic materials exhibit specific behaviours due to the in situ growth of the NPs and specifically derived structure (good dispersion of NPs in the carbon walls or pores, crystalline growth directed by confinement, accessibility of NPs). The objective is to understand the synergy observed for these nanocomposites carbon/NPs to improve performances in applications such as hydrogen storage (metallic hydride formation) or electrochemical energy storage (Li and Na batteries, supercapacitors).



NPs size effects on the kinetic and thermodynamics of the thermal evolution of  metal hydride NPs (MgH2) confined in a microporous carbon matrix. The release temperature of hydrogen from MgH2 is significantly decreased for NPs confined compared to bulk MgH2 (~ 200°C).



Reprinted with permission from [Ultrasmall MgH2 Nanoparticles Embedded in an Ordered Microporous Carbon Exhibiting Rapid Hydrogen Sorption Kinetics, C Zlotea, Y Oumellal, S-J Hwang, C Matei Ghimbeu, PE de Jongh, M Latroche,  J. Phys. Chem. C, 2015, 119 (32), pp 18091–18098, DOI: 10.1021/acs.jpcc.5b05754] Copyright © 2015, American Chemical Society.

Positive effects of the confinement of SnO2 NPs in the mesoporosity of carbon-based electrodes on the cyclability in Li-ion batteries. The confinement limits nanoparticles growth during charge/discharge cycling and improves the stability of the electrochemical capacity of the material with time.



Reprinted with permission from [Confined Ultrasmall SnO2 Particles in Micro/Mesoporous Carbon as an Extremely Long Cycle-Life Anode Material for Li-Ion Batteries; A. Jahel, C. Matei Ghimbeu, L. Monconduit, C. Vix-Guterl Advanced Energy Materials 2014 4  1400025] © 2014 John Wiley and Sons   DOI : 10.1002/aenm.201400025

Publications

C Nita, J Fullenwarth, L Monconduit, J-M Le Meins, Ph Fioux, J Parmentier, L Vidal, C Matei Ghimbeu, Carbon 2019, 143, 598, DOI : 10.1016/j.carbon.2018.11.069

Specific facilities

Syntheses

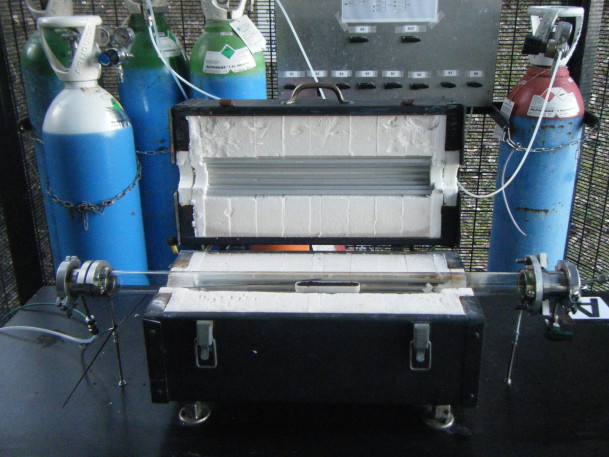

Furnaces used for thermal treatments under gas flow (3 set-ups)

Use : CVD (Chemical Vapor Deposition) – CVI (Chemical Vapor Infiltration) – Oxidations – Reductions – Activations – Carbonizations – Nitridations

Characteristics : Quartz tube – 3 furnaces up to 950°C – Ar/Air/O2/NH3/H2/H2S/C3H6 flows

Device model : The furnaces and the computer program controlling the gas flows were developed by the CMH team

High temperature furnace under gas flow

Use : Carbonization – Calcination

Characteristics : Alumina tube – Tmax : 1500°C – Argon or Air flow

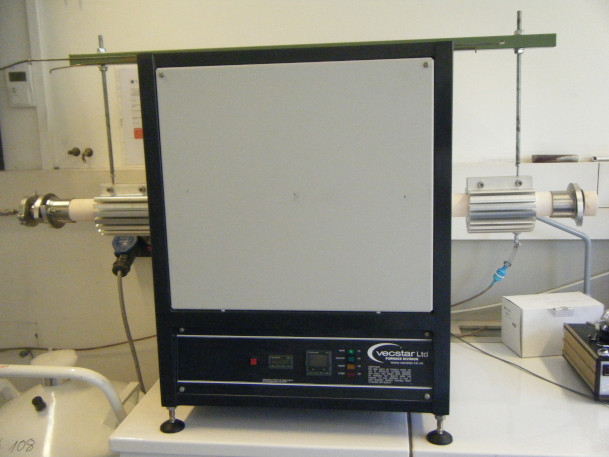

Device model : Vecstar – Furnace with an electrical chamber

Very high temperature furnace

Use : High temperature thermal treatments with operando weight loss measurement using TGA balance

Characteristics : Glassy carbon/alumina tube – Tmax : 2000°C/1600°C depending on the tube – Argon flow or vacuum

Device model : Setaram – Four TG96

Microwave reactor

Use : Open or closed vessel for material quick synthesis under controlled pressure and temperature

Characteristics : 300W- open reactor (100ml)/closed reactor (10, 35 or 80ml)

Device model : CEM – Discover SP

Ball miller under controlled atmosphere

Use : Materials milling and activations – Mecanosynthesis – Study of the impact of mechanical strains on materials

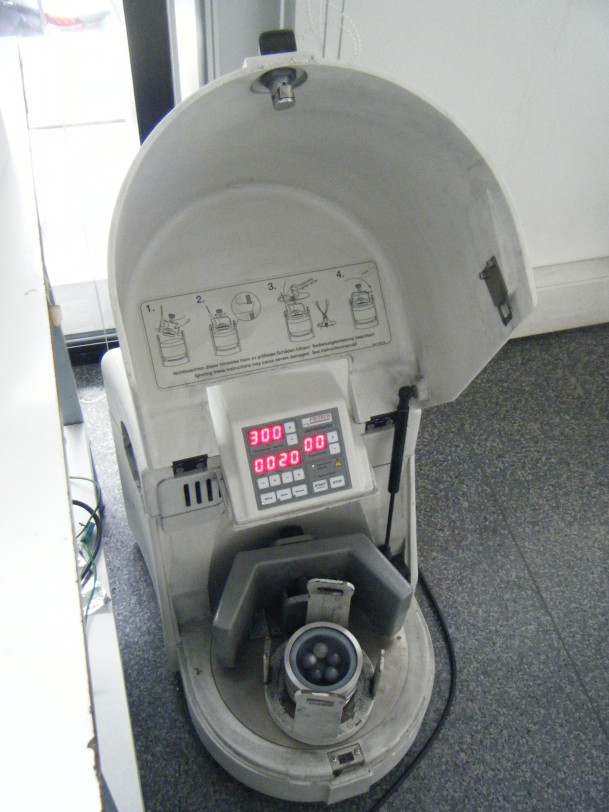

Characteristics : Steel/tungsten carbide/agate/zirconium jars – 300-rpm – Capacity 3g

Device model : Fritsch – Pulverisette 6

Disk miller under controlled atmosphere

Use : Materials milling and activations

Characteristics : Temperature controlled – Steel/agate jars, rings and cylinders– 700rpm – Capacity 50g

Device model : Retsch – RS200

Autoclaves

Use : Hydrothermal syntheses

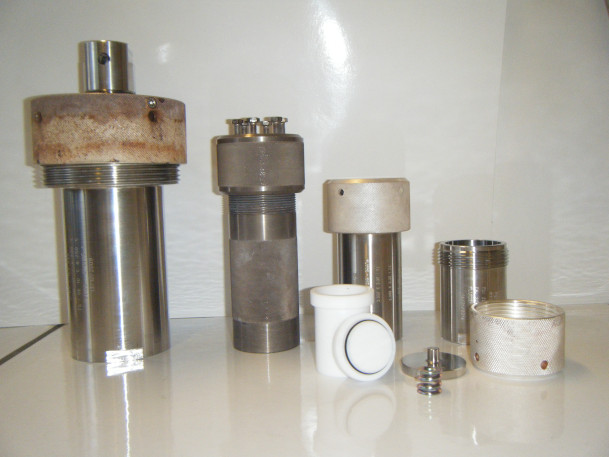

Characteristics : 500/100/50ml- 100 to 160 bars – 250°C

Device model : Top Industrie

Characterizations

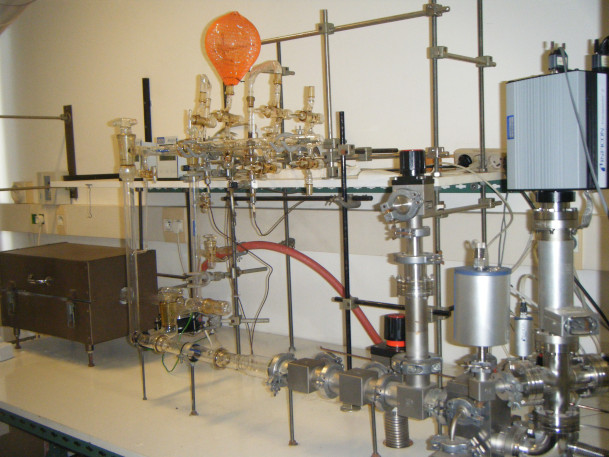

Temperature-programmed desorption coupled with mass spectroscopy (TPD-MS)

Quantitative and qualitative analysis of evolved gases by mass spectrometry depending on temperature.

Use : Surface functions analysis – Study of interactions between adsorbed molecules and substrate – Active Site Area measurement – Qualitative and quantitative measurement of adsorbed molecules

Characteristics : Secondary vacuum measurement – Tmax : 950°C – Quartz tube and crucible

Device model : Equipment developed by the CMH team

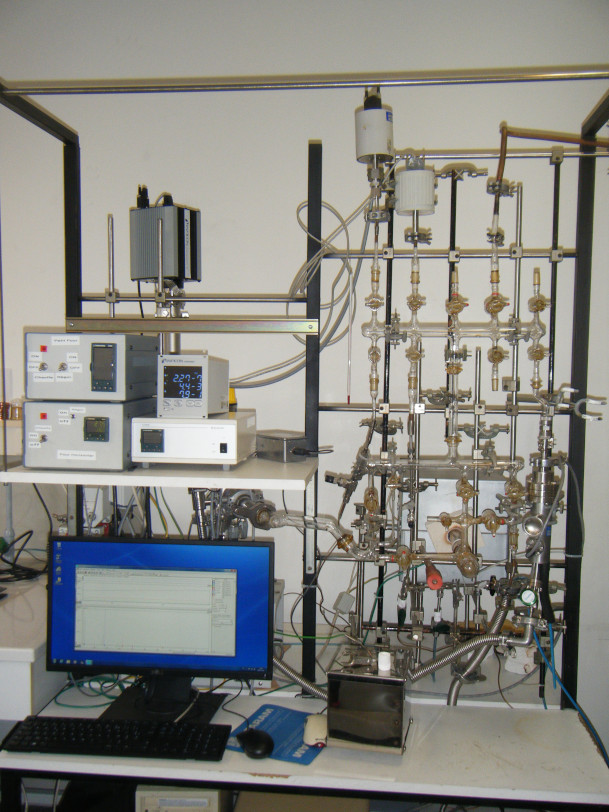

TPD-MS with cryogenic trap

Quantitative and qualitative mass spectrometry analysis of evolved gases during thermal annealing, equipped with a cryogenic trap which allows separating and isolating gases

Use : Gas separation within a gas mixture by mean of a cryogenic trap – Surface functions analysis – Study of interactions between adsorbed molecules and substrate – Active Site Area measurement – Qualitative and quantitative measurement of adsorbed molecules

Characteristics : Secondary vacuum measurement – Tmax : 950°C – Quartz tube and crucible

Device model : Equipment developed by the CMH team

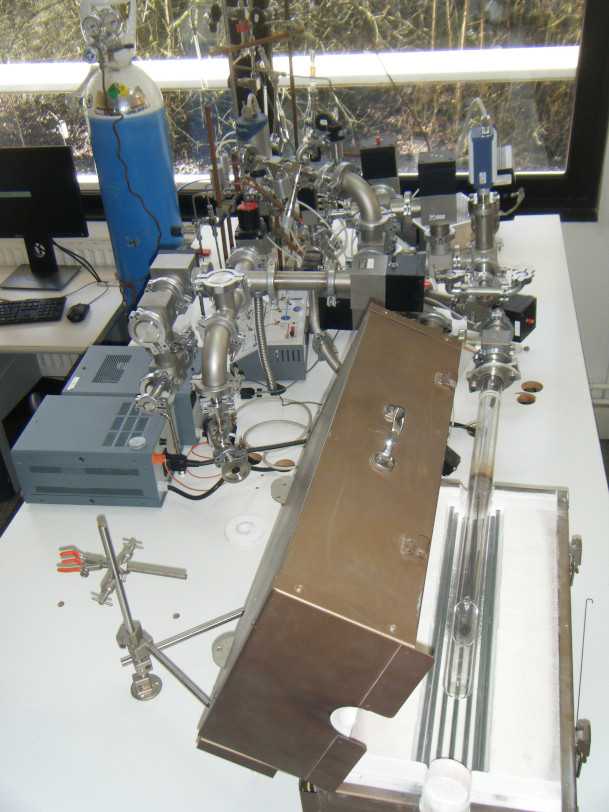

High temperature TPD-MS

Quantitative and qualitative mass spectrometry analysis of evolved gases during temperature annealing using a high temperature furnace

Use : Study of material structural reorganization at high temperature by measuring evolved hydrogen – Study of the stable surface functional groups at high temperature (>900°)

Characteristics : Secondary vacuum measurement – Tmax : 1500°C – Alumina tube and platinum crucible

Device model : Equipment develop by the CMH team

UV-visible Raman

Use : Materials molecular and structural identification – Study of defects and graphitization level of carbon materials

Characteristics : 488/244 nm – Atmosphere and temperature controlled measurements

Device model : Horiba Jobin-Yvon Labram HR800 Raman – CCD Symphony II Detector – Lexel 95SHG Laser – Linkam TS1500

DRIFT

Use : Identification and characterization of chemical structures

Characteristics : 4000-750 cm-1 – Atmosphere and temperature controlled measurements

Device model : Jasco FT-IR4100 – MCT Detector – PIKE Technologies temperature controller

Gas pycnometer

Use : Powder density measurement

Characteristics : Helium pycnometry

Device model : Micromeritics – Accupyc 1340

Applications

Multichannel Potentiostat / Galvanostat

Use : Cyclic voltammetry – Galvanostatic cycling – Impedance Spectroscopy

Characteristics : 6 channels – 2/3 electrodes – Maximum current 40A

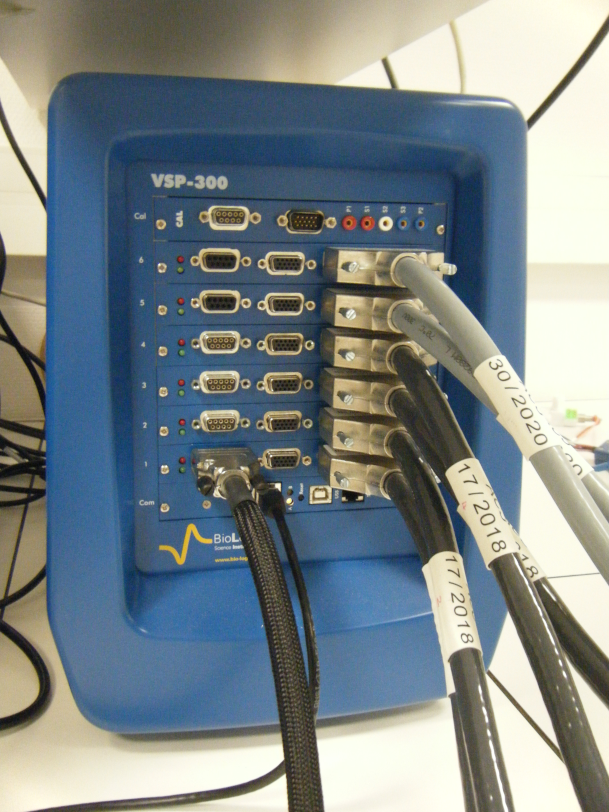

Device model : Bio Logic Science Instruments – VSP300

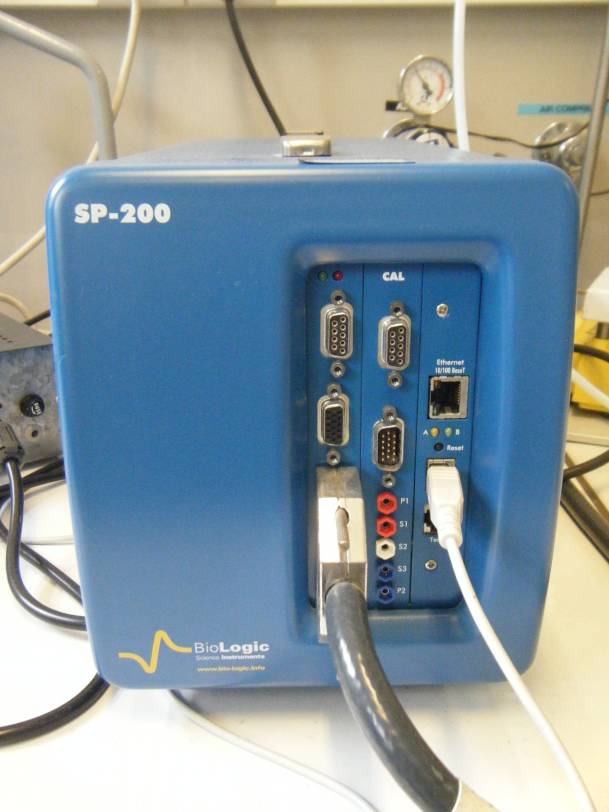

Potentiostat / Galvanostat

Use : Cyclic voltametry – Galvanostatic cycling

Characteristics : 2/3 électrodes – courant maximal 500mA

Device model : Bio Logic Science Instruments – SP200

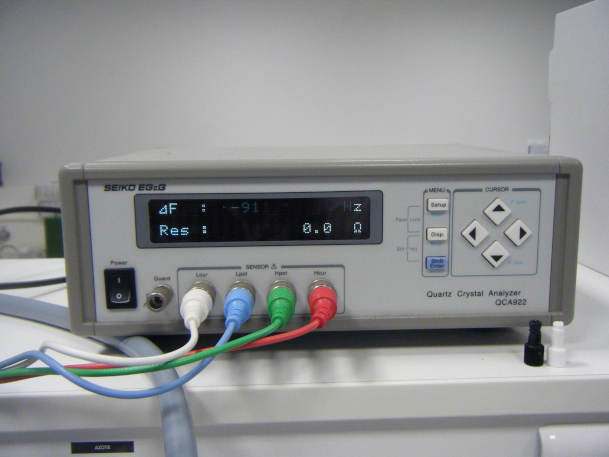

Quartz Crystal Microbalance

Use : Coupled with Galvanostat-Potentiostat – Analysis of electrochemical reaction mechanisms

Characteristics : 1 channel – 9MHz crystal resonator

Device model : SEIKO EG&G – QCA922

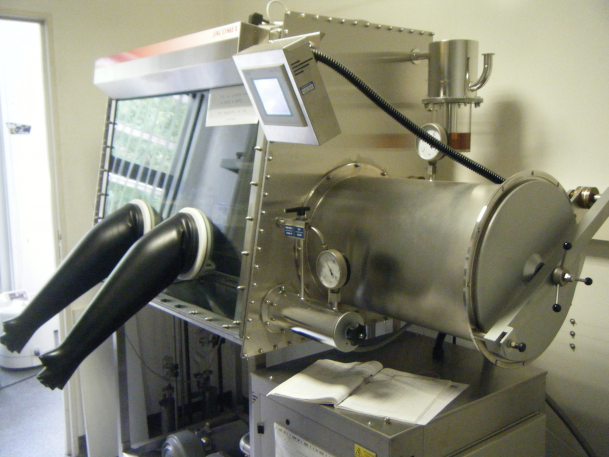

Glove box

Use : Materials preparation and storage under inert atmosphere

Characteristics : Work under overpressure – Argon

Device model : Jacomex – GPT2

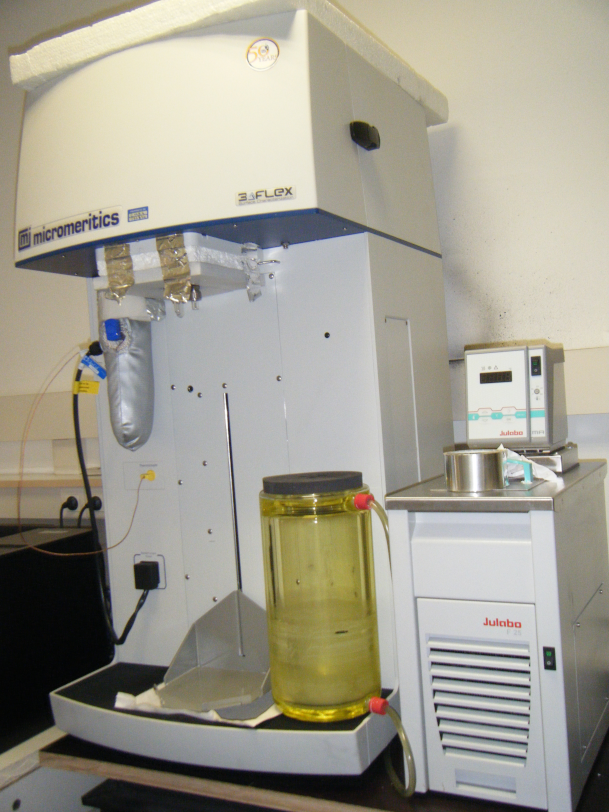

Gas and vapor adsorption manometer

Use : Measurement of gas/vapor adsorption capacity – Study of hydrophilic/hydrophobic materials behavior – Study of gas/vapor and materials interactions – Thermodynamic studies

Characteristics : Temperature controlled from 4°C to 25°C – 3 analysis channels – Gas N2/H2/Kr – H2O/COV vapors

Device model : Micromeritics – 3Flex

Main collaborators

Institut de Chimie et des Matériaux de Paris Est (France)

Université de Strasbourg (France)

CIRIMAT  (France)

Collège de France (France)

Institut Charles Gerhart (France)

Institut Jean-Lamour (France)

Université Blaise Pascal (France)

Ecole des Mines d’Albi, France

ENS Paris (France)

MIT (Boston, USA)

Instituto Nacional del Carbon (Spain)

Université de Monastir et Ecole Nationale des Ingénieurs de Gabes (Tunisia)

National Institute for Laser (Romania)

Université d’Ostrava (Czech Republic)

Poznan University of Technology (Poland)

University of Tokyo (Japan)

SAFRAN

ONET
